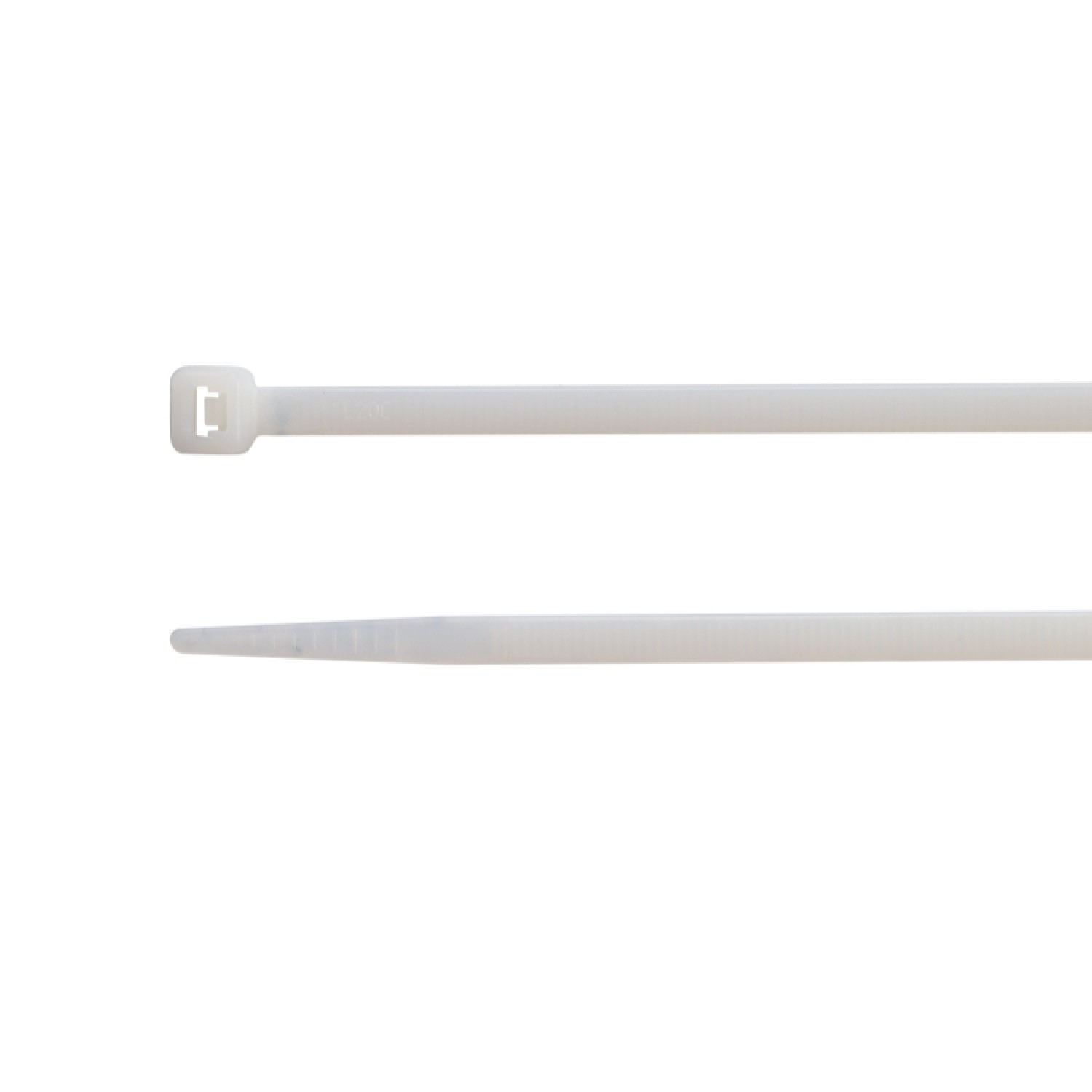

NYLON CABLE-TIES · STANDARD

Product Category	Nylon cable ties
Material	polyamide (PA 6.6)
Color	natural
Insulation self-extinguishing	UL 94 V2
Operating temperature	from -40 °C to +85 °C
Minimum installation temperature	-10 °C
Chemical resistance	good resistance to bases, oils, grease, chloride solvents. Limited resistance to acids. Not resistant to phenols.
Assembly	open the package just before use
According to std.	EN 62275:2015-02
Classification	type 1 (EN), type 21 (UL)
Etim 9	EC000046
cid	11FA01A

Item Code	Width [mm]	Length [mm]	Max bundle Ø [mm]	Min bundle Ø [mm]	Tensile minimum resistance [N]	
B0824	2,5	80	14	3	80	100/5000
B0824M	2,5	80	14	3	80	1000/1000
B1025	2,5	102	20,5	3	80	100/5000
B1025M	2,5	102	20,5	3	80	1000/1000
B1225	2,5	120	27	3	80	100/4000
B1225M	2,5	120	27	3	80	1000/1000
B1625	2,5	160	40	3	80	100/4000
B1625M	2,5	160	40	3	80	1000/1000
B2025	2,5	200	52,5	3	80	100/3000
B2025M	2,5	200	52,5	3	80	1000/1000
B1436	3,5	140	33	3	180	100/2500
B1436M	3,5	140	33	3	180	1000/1000
B2036	3,5	200	52,5	3	180	100/2000
B2036M	3,5	200	52,5	3	180	1000/1000
B2936	3,5	300	106	3	180	100/1500
B2936M	3,5	300	106	3	180	1000/1000
B3736	3,5	370	105	3	180	100/4000
B1248	4,6	120	24	3	220	100/2000
B1648	4,6	160	36	3	220	100/1500
B1648M	4,6	160	36	3	220	1000/1000
B1948	4,6	190	46	3	220	100/1500
B1948M	4,6	190	46	3	220	1000/1000
B2048	4,6	200	50	3	220	100/1500
B2048M	4,6	200	50	3	220	1000/1000
B2548	4,7	250	65	3	220	100/1500
B2548M	4,7	250	65	3	220	1000/1000
B3048	4,7	300	81	3	220	100/1000
B3048M	4,7	300	81	3	220	1000/1000
B3748	4,7	370	103,5	3	220	100/3000
B3948	4,7	390	110	3	220	100/2500
B4348	4,7	430	122,5	3	220	100/1500
B5348	4,7	530	160	3	220	100/100
B1576	7,5	150	24	6	550	100/1000
B2076	7,5	200	51	6	550	100/1000
B2976	7,5	300	83	6	550	100/600
B3776	7,5	370	103,5	6	550	100/1000
B4576	7,5	450	130,5	6	550	100/100
B5476	7,5	550	159	6	550	100/100
B7576	7,5	750	226	6	550	100/100
B4390	8,8	450	130,5	9	800	100/100
B5390	8,8	550	163,5	9	800	100/100
B7190	9	710	195	9	800	100/100
B7890	9	780	235,5	9	800	100/100
B8190	9	810	245	9	800	100/100
B1090	9	1020	295	9	800	100/100
B1290	9	1220	375,5	9	800	100/100
B1590	9	1530	460	9	800	100/100
