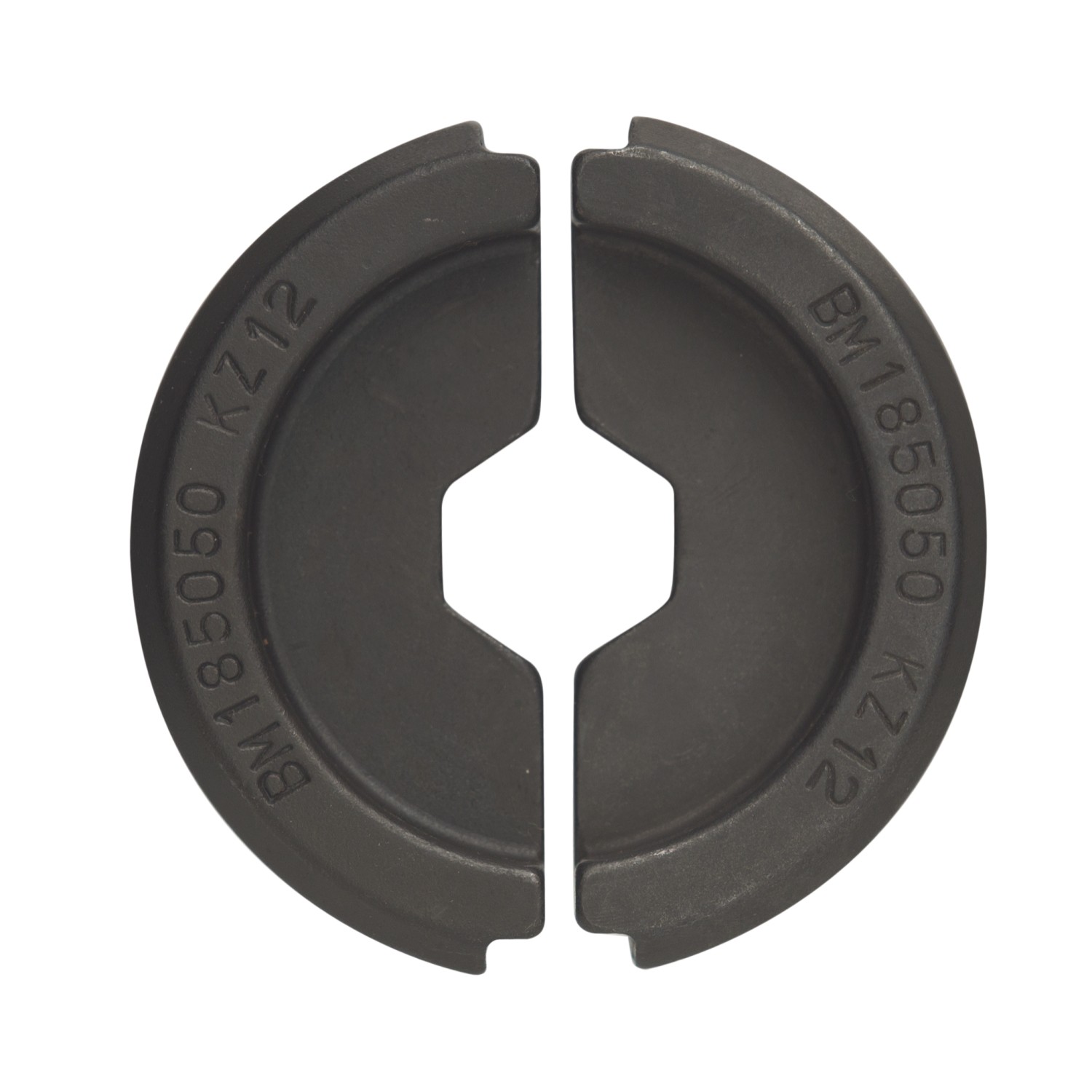

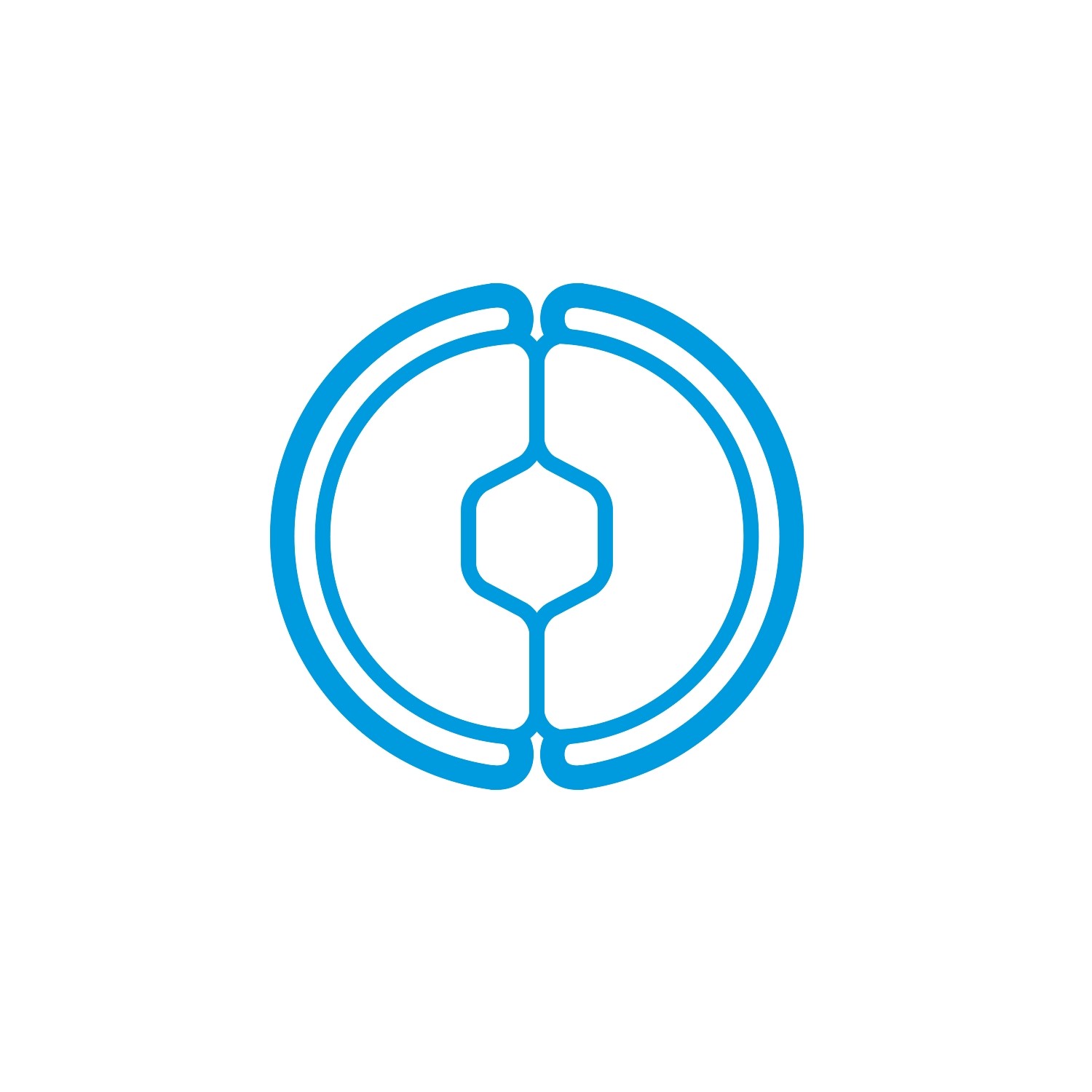

DIES SERIES 85

DIES SERIES 84

DIES SERIES 86 · FOR DEEP INDEND

Surface finish	burnished
Material	steel + heat treatment
Series	85
Compatibility	• BM 38A062 (hydraulic battery crimping tool)
Etim 9	EC001282
cid	31AA11O

Coded items

Item Code	Crimping type	ID	Terminal type	Conductor material	Section [mm²]	Section [AWG]
185550			prerounding	copper and aluminium	50	(1/0)
185570			prerounding	copper and aluminium	70	(2/0)
185595			prerounding	copper and aluminium	95	(3/0)
185512			prerounding	copper and aluminium	120	(4/0)
185515			prerounding	copper and aluminium	150	(300)
185310	hexagonal	6	for uninsulated DIN 46235, 46234, 46267/1 terminals	copper	10	(8)
185010	hexagonal	7 7	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper	10 10	(8) (8)
185016	hexagonal	7.5 7.5	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper	16 16	(6) (6)
185316	hexagonal	8	for uninsulated DIN 46235, 46234, 46267/1 terminals	copper	16	(6)
185025	hexagonal	9 9	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper	25 25	(4) (4)
185325	hexagonal	10 10	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.)	copper copper	25 25	(4) (4)
185035	hexagonal	11 11	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals	copper copper	35 35	(2) (2)
185050	hexagonal	12 12 12 12	for class 1, 2, 5 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium	50 35 35 ÷ 50 16 ÷ 25	(1/0) (2) (2-1/0) (6-4)
185435	hexagonal	13 13	for class 6 uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper aluminium	50 35	(1/0) (2)
185070	hexagonal	14 14 14	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper copper	70 70 50	(2/0) (2/0) (1/0)
185450	hexagonal	15 15	for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium aluminium	16 ÷ 25 50	(6-4) (1/0)
185095	hexagonal	16 16 16	for class 1, 2, 5 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.)	copper copper copper	95 70 70	(3/0) (2/0) (2/0)
185012	hexagonal	18 18 18	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper copper	120 95 95	(4/0) (3/0) (3/0)
185015	hexagonal	20 20 20 20 20 20	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201 for bimetallic uninsulated terminals	copper copper copper copper aluminium aluminium	150 120 120 95 70 35 ÷ 95	(300) (4/0) (4/0) (3/0) (2/0) (2-3/0)
185495	hexagonal	21	for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium	95	(3/0)
185018	hexagonal	22 22 22 22	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium aluminium	185 150 120 ÷ 150 120 120	(400) (300) (4/0-300) (4/0) (4/0)
185024	hexagonal	25 25 25 25 25	for class 1, 2, 5 uninsulated terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium aluminium	240 185 185 120 ÷ 150 150	(500) (400) (400) (4/0-300) (300)
185030	hexagonal	28 28 28 28	for class 1, 2, 5 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium	300 240 185 ÷ 300 185	(600) (500) (400-600) (400)
185424	hexagonal	32 32	for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201 for bimetallic uninsulated terminals	copper aluminium	240 185 ÷ 240	(500) (400-500)
185110	radial containment		for insulated terminals	copper	10	(8)
185116	radial containment		for insulated terminals	copper	16	(6)
185125	radial containment		for insulated terminals	copper	25	(4)
185135	radial containment		for insulated terminals	copper	35	(2)
185150	radial containment		for insulated terminals	copper	50	(1/0)
185170	radial containment		for insulated terminals	copper	70	(2/0)
185195	radial containment		for insulated terminals	copper	95	(3/0)
185210	oval		for C shunts	copper	10	(8)
185225	oval		for C shunts	copper	16 ÷ 25	(6-4)
185235	oval		for C shunts	copper	35	(2)
185250	oval		for C shunts	copper	50	(1/0)
185650	trapezoidal		for end-sleeve terminals	copper	50	(1/0)
185670	trapezoidal		for end-sleeve terminals	copper	70	(2/0)
185695	trapezoidal		for end-sleeve terminals	copper	95	(3/0)
185706	hexagonal		for NFC terminals	copper	6	(10)
185710	hexagonal		for NFC terminals	copper	10	(8)
185716	hexagonal		for NFC terminals	copper	16	(6)
185725	hexagonal		for NFC terminals	copper	25	(4)
185735	hexagonal		for NFC terminals	copper	35	(2)
185750	hexagonal		for NFC terminals	copper	50	(1/0)
185770	hexagonal		for NFC terminals	copper	70	(2/0)
185795	hexagonal		for NFC terminals	copper	95	(3/0)
185712	hexagonal		for NFC terminals	copper	120	(4/0)
185715	hexagonal		for NFC terminals	copper	150	(300)
185718	hexagonal		for NFC terminals	copper	185	(400)
185724	hexagonal		for NFC terminals	copper	240	(500)
185730	hexagonal		for NFC terminals	copper	300	(600)
