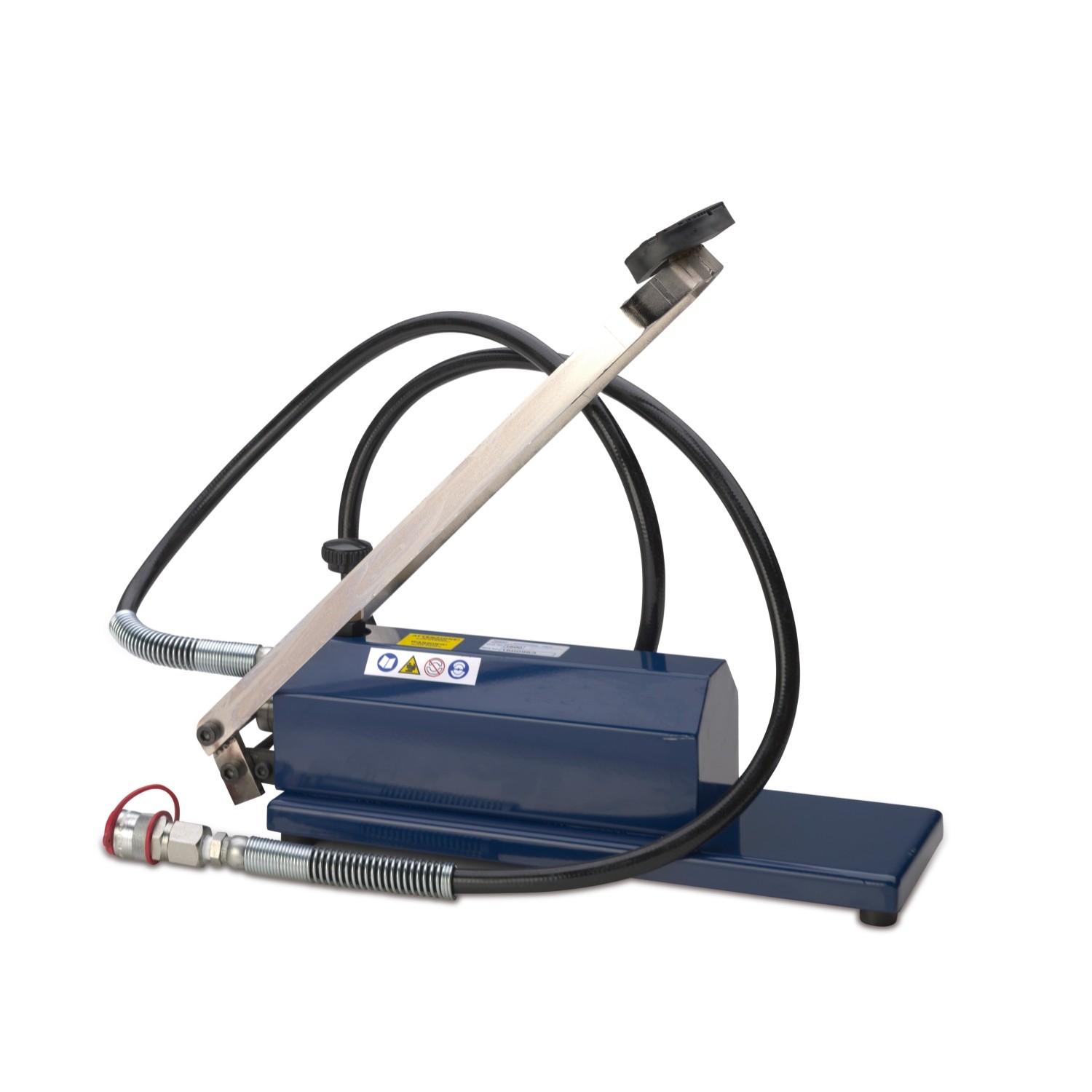

HYDRAULIC FOOT-PUMP

ACCESSORIES FOR BM 1600 · CASE

• high pressure flexible tube with quick coupling female connector with automatic locking
• two working speeds to have two piston advancement speeds, one for quick approach the other for operation
• automatic end-of-work release device to guarantee punching quality
• release device activated by a button to open the tool at the end of operation and in case of a wrong maneuver

Product Category	hydraulic pump
Pressure	max 700 bar
Compatibility	usable heads • 283, 284, 286, 270 (crimping) • 287, 288, 289 (cutting) • 265, 267, 263 (drilling) • 26914 (cutting DIN rails)
Drive	foot-pump
Etim 9	EC001185
cid	31AE01A

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist
1600	Hydraulic foot-pump	460	130	400	13	500x150x250	SC
