ONE-WAY TERMINAL BLOCKS · END CONNECTORS · BARS · WITH INDIRECT CLAMPING

New

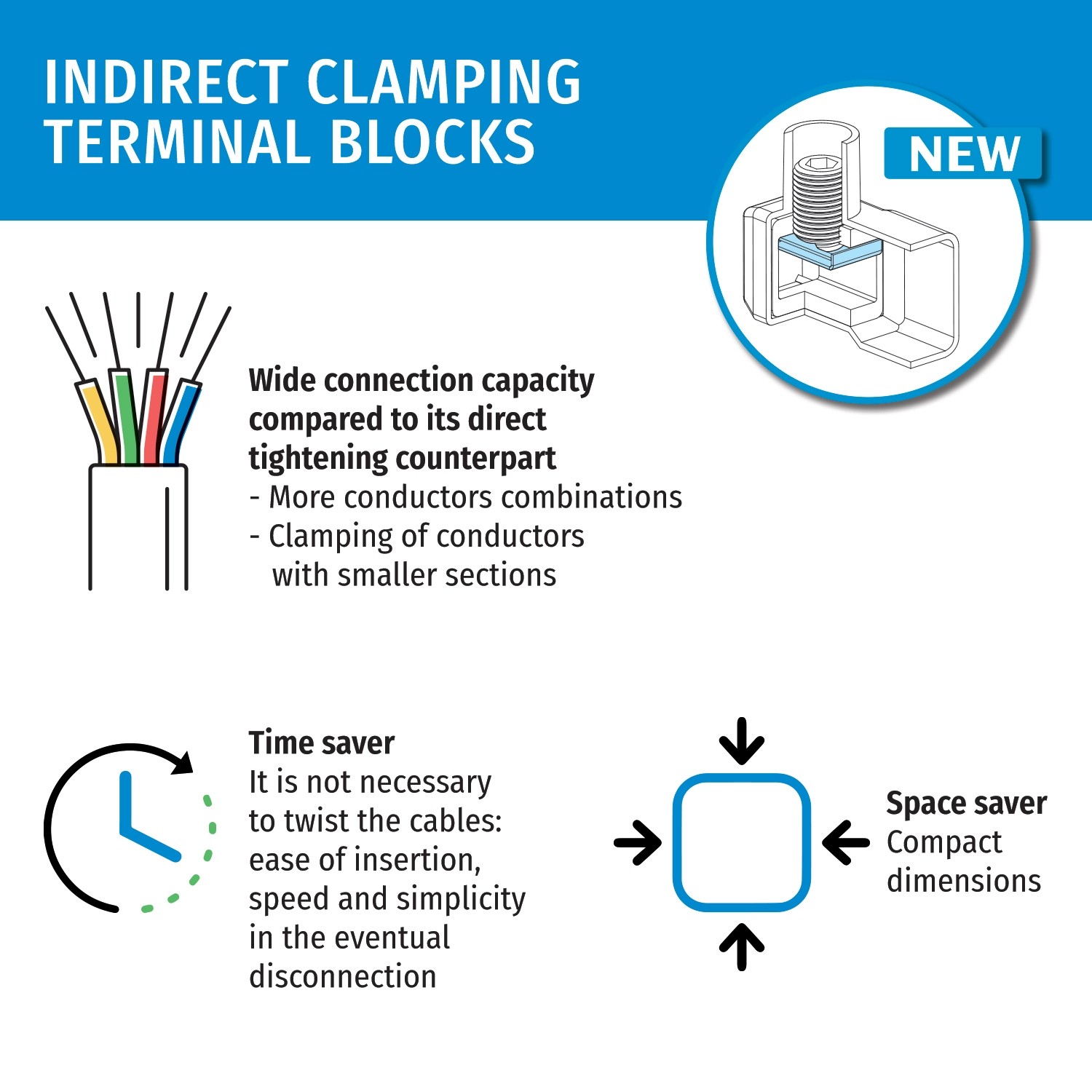

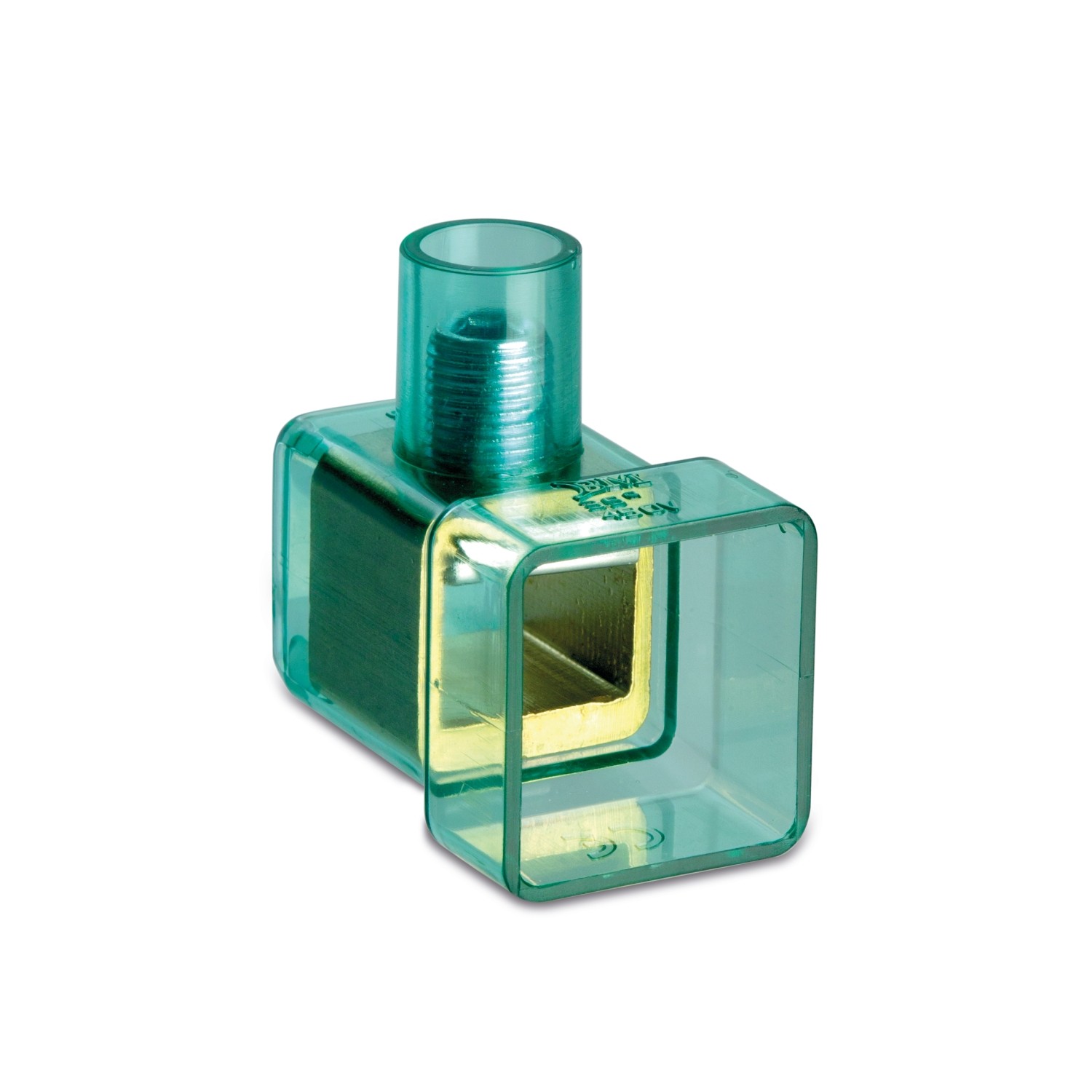

ONE-WAY TERMINAL BLOCKS · END CONNECTORS · BARS · WITH INDIRECT CLAMPING

Product Category	terminal blocks for free connections
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass

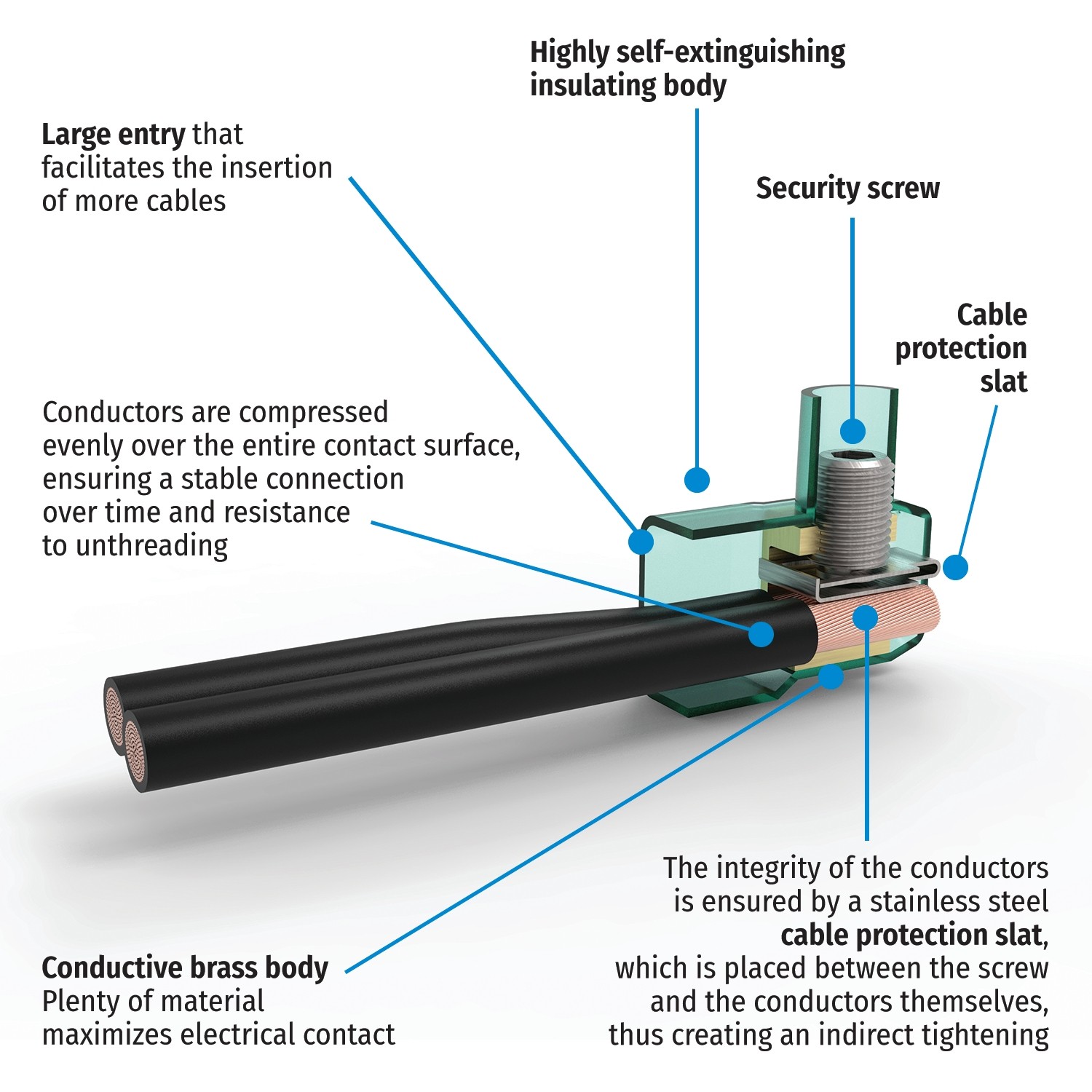

Wire protection	stainless steel
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Protection grade	IP00
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MB01G

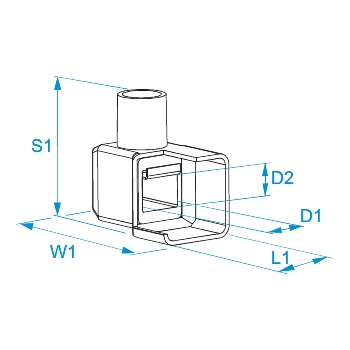

Images with
dimensions

Coded items

Item Code	Conductor section [mm²]	Connection capability Section [mm²]	Wire protection	Connection capability N. rigid conductors	Connection capability N. flexible conductors	Rated voltage [V]	Test current [A]	Screw	D1 [mm]	D2 [mm]	L1 [mm]	W1 [mm]	S1 [mm]		Quantity per Wishlist
9960CS	25	25 16 10 6 4 2,5	stainless steel	2 2 ÷ 3 2 ÷ 4 2 ÷ 8 2 ÷ 11 4 ÷ 16	2 2 ÷ 3 2 ÷ 4 2 ÷ 8 2 ÷ 11 4 ÷ 16	450	101	M10	12	9,1	22,5	36,3	37	50/50
