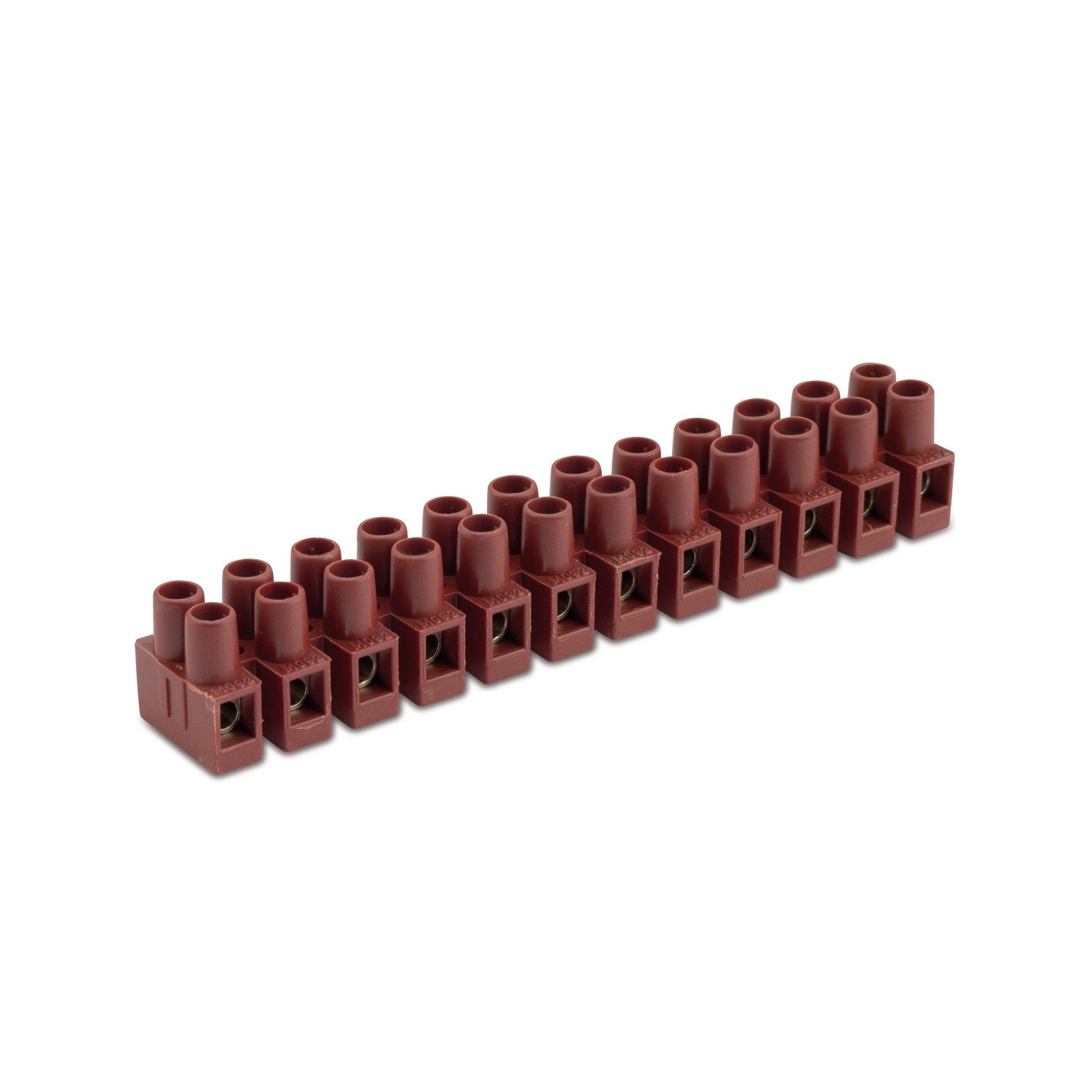

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M092 SERIES WITH FIBERGLASS AND WIRE PROTECTION

Previous

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M092 SERIES WITH FIBERGLASS

Previous

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M093 SERIES WITH FIBERGLASS

High temperature version with wire protection of the M092 series
Product Categorymultiway terminal blocks
Insulating housingpolyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive bodynickel-plated brass
Captive screw ingalvanized steel (M3)
Wire protectionstainless steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max short-time temperature200 °C
Test voltage2500 V
Stripping length5 mm
Protection gradeIP20
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9EC001284
cid41MA03D
PDF documents
ImageSection
[mm²]		Section
[AWG]		Rated voltage
[V]		Test current
[A]		Max operating temperature
[°C]		Torque
[Nm]
2,5-250241400,25
-20-1660010 (*)1100,5
* 15 A rated for Factory Wiring Only
Images with
dimensions
Item
Code		 WaysColorL1
[mm]		L2
[mm]		L3
[mm]		L4
[mm]		W1
[mm]		W2
[mm]		S1
[mm]		S2
[mm]		D1
[mm]		D2
[mm]		 Quantity per
Wishlist
92FS1 1Brown5,6 ± 185,52,515,2615,38,732,6Contact BM
92FS2 2Brown13,5 ± 185,52,515,2615,38,732,6Contact BM
92FS3 3Brown21,5 ± 185,52,515,2615,38,732,6Contact BM
92FS4 4Brown30 ± 185,52,515,2615,38,732,6Contact BM
92FS5 5Brown37,5 ± 185,52,515,2615,38,732,6Contact BM
92FS6 6Brown45,5 ± 185,52,515,2615,38,732,6Contact BM
92FS7 7Brown54 ± 185,52,515,2615,38,732,6Contact BM
92FS8 8Brown61,5 ± 185,52,515,2615,38,732,6Contact BM
92FS9 9Brown69,5 ± 185,52,515,2615,38,732,6Contact BM
92FS10 10Brown77,5 ± 185,52,515,2615,38,732,6Contact BM
92FS11 11Brown85,5 ± 185,52,515,2615,38,732,6Contact BM
92GFCS 12Brown93,5 ± 185,52,515,2615,38,732,650/700
