MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M093 SERIES WITH FIBERGLASS AND WIRE PROTECTION

Product was successfully added to your shopping cart.

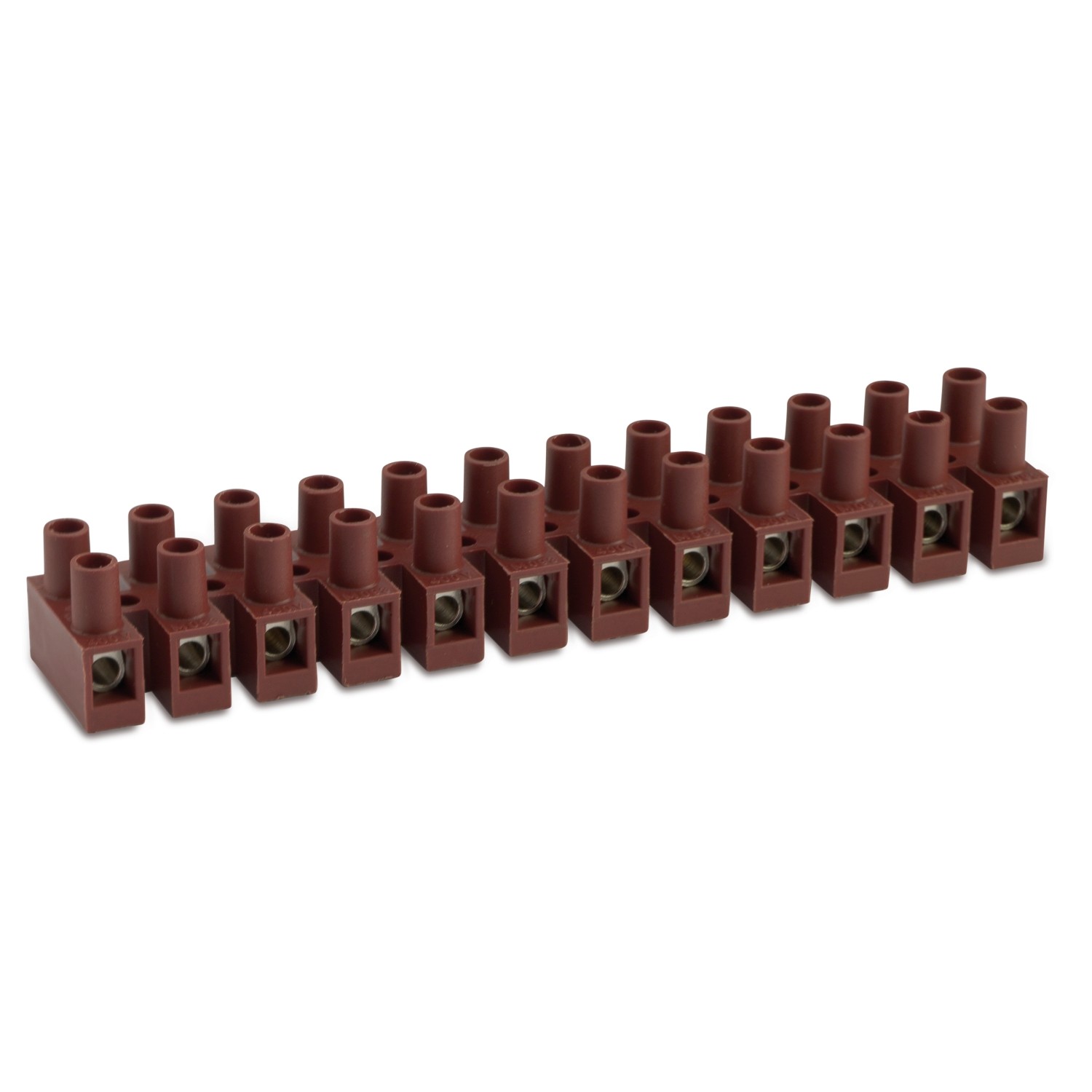

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M093 SERIES WITH FIBERGLASS AND WIRE PROTECTION

High temperature version with wire protection of the M093 series

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
Wire protection	stainless steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
Stripping length	7 mm
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MA04D

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	2.5	-	400	24	150	0,25
	-	18-12	600	20 (*)	110	0,5

* 30 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]	D1 [mm]	D2 [mm]	
93FS1	1	Brown	6,7 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS2	2	Brown	16,7 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS3	3	Brown	26,6 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS4	4	Brown	36,6 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS5	5	Brown	46,6 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS6	6	Brown	56,6 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS7	7	Brown	67 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS8	8	Brown	77 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS9	9	Brown	87 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS10	10	Brown	97 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93FS11	11	Brown	107 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	Contact BM
93GFCS	12	Brown	117 ± 1	10	6,7	3,3	20,5	10	17,5	10	3,3	3,3	50/500
