MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M094 SERIES WITH FIBERGLASS AND WIRE PROTECTION

Product was successfully added to your shopping cart.

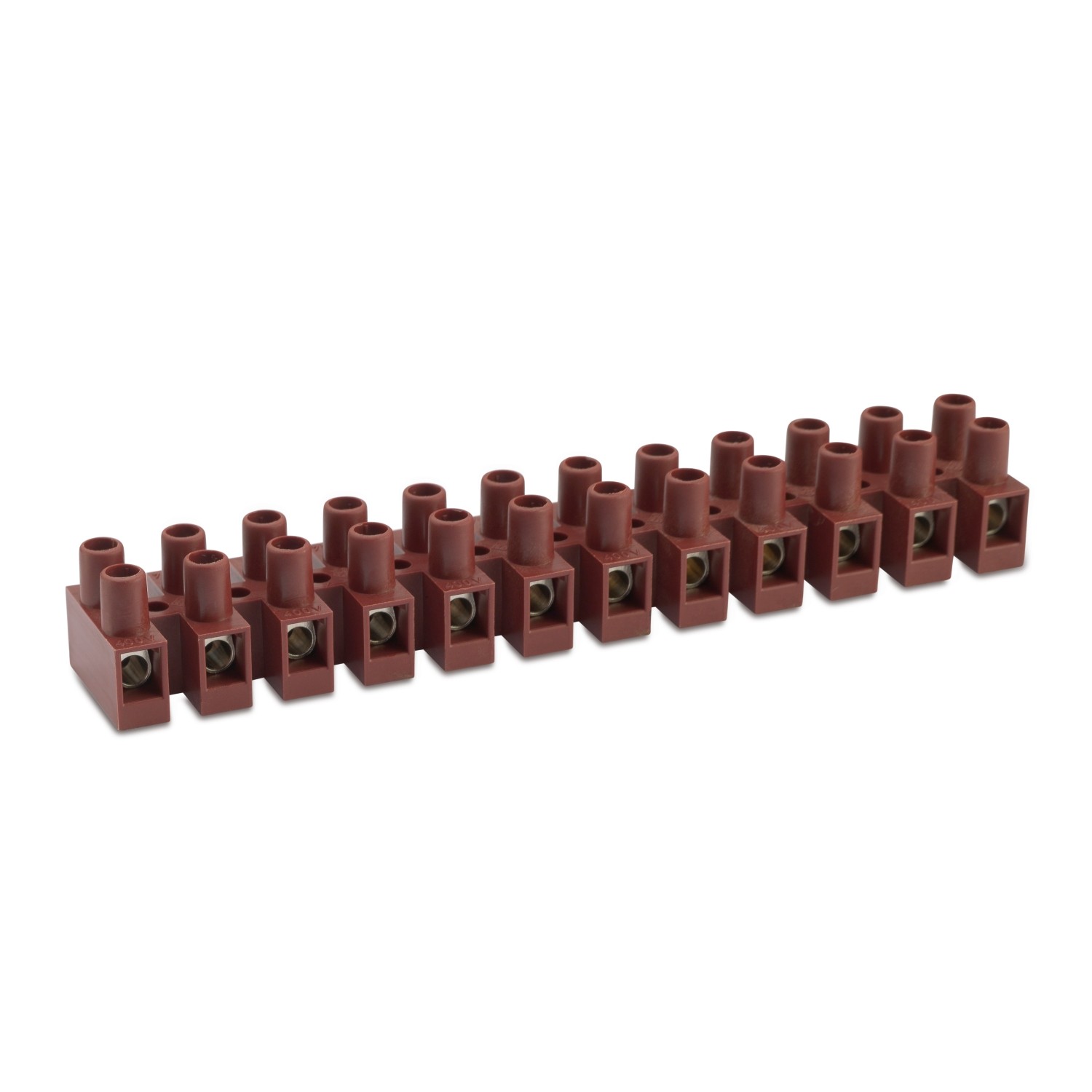

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 12 WAYS · M094 SERIES WITH FIBERGLASS AND WIRE PROTECTION

High temperature version with wire protection of the M094 series

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3,5)
Wire protection	stainless steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
Stripping length	7.5 mm
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Etim 9	EC001284
cid	41MA06D

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	4	-	400	23	140	0,7
	-	18-10	600	30 (*)	110	0,9

* 40 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]	D1 [mm]	D2 [mm]	
94FS1	1	Brown	7,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS2	2	Brown	19,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS3	3	Brown	31,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS4	4	Brown	43,6 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS5	5	Brown	55,5 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS6	6	Brown	68 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS7	7	Brown	80 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS8	8	Brown	92 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS9	9	Brown	104 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS11	11	Brown	128 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94FS10	10	Brown	116 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	Contact BM
94GFCS	12	Brown	140 ± 1	12	7,3	4,7	23	10	20,7	12,2	4,2	3,1	50/300
