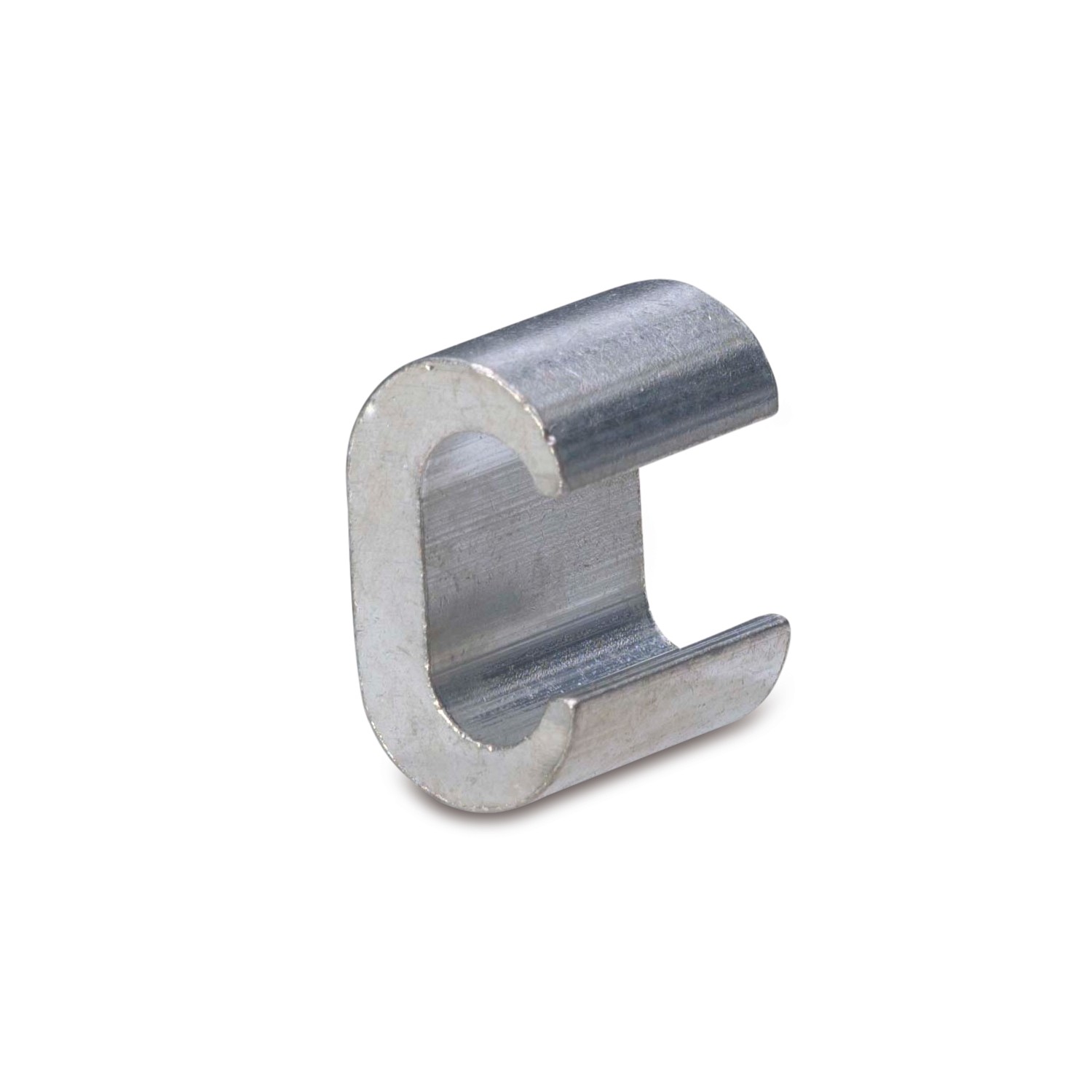

C SHUNT · TINNED COPPER

C SHUNT

TERMINAL LUGS FOR COPPER CONDUCTORS FOR GROUND · UNINSULATED · RING

Product Category	C shunts
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Application	connectors for ground connections
Etim 9	EC001059
cid	11TH01B

Images with
dimensions

Coded items

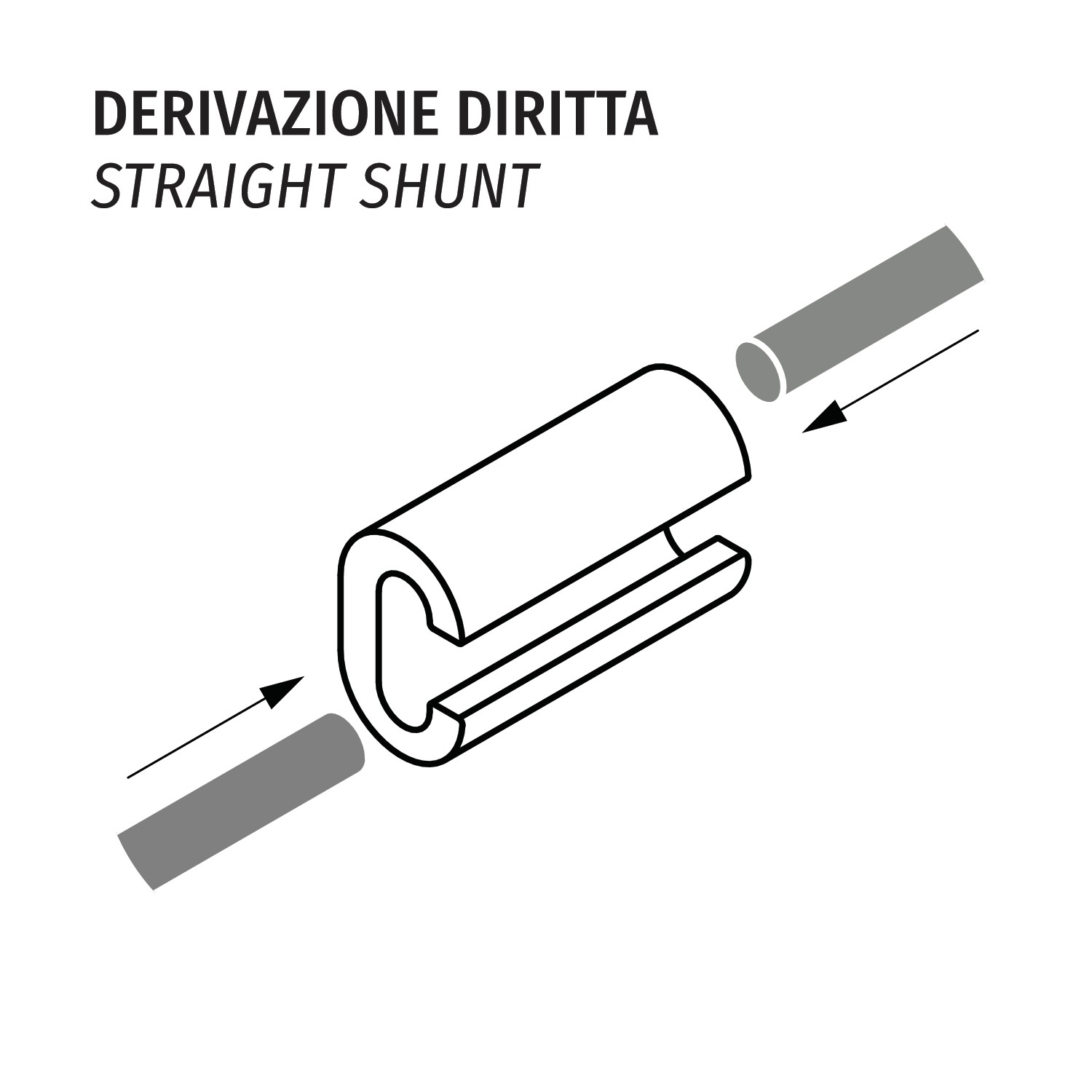

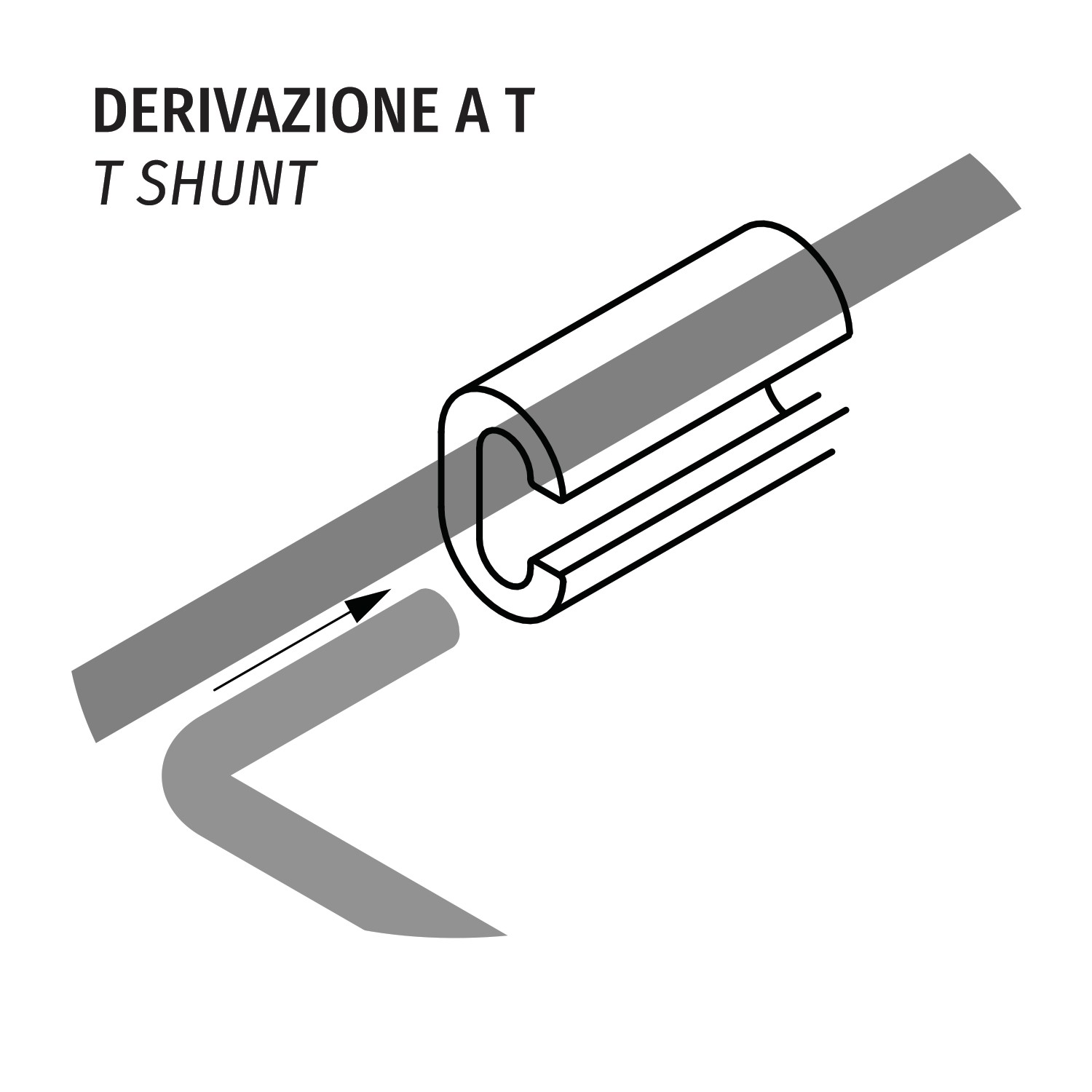

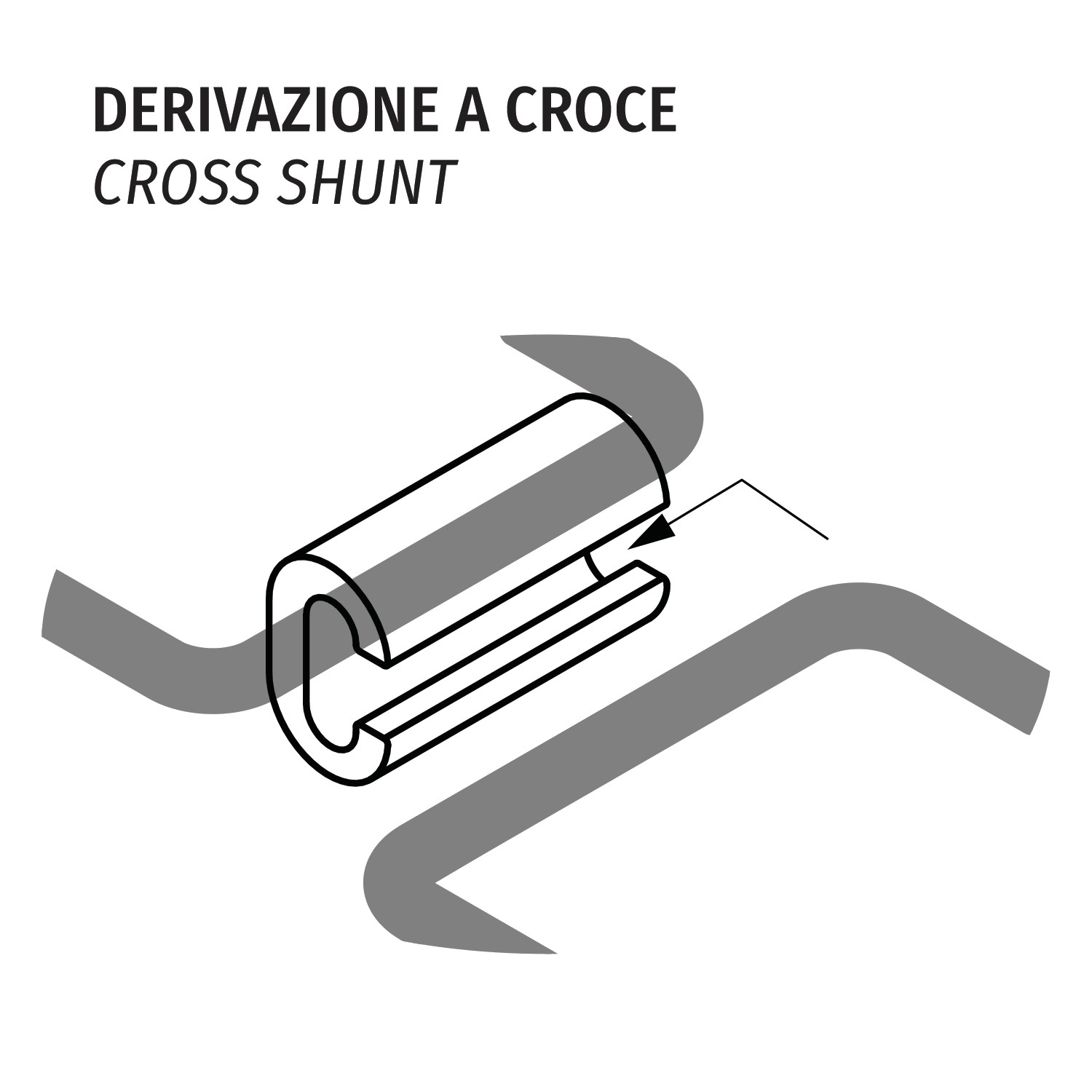

Item Code	Section [mm²]	Section [AWG/kcmil]	T/Straight shunt Primary [mm²]	T/Straight shunt Derivative [mm²]	Cross shunt Section [mm²]	L1 [mm]	S1 [mm]		Quantity per Wishlist
014161	6 ÷ 6	(10 - 10)	6 - 2.5	6 - 1.5	-	9	9,8	100/100
014001	10 ÷ 10	(8 - 8)	10	10 - 1.5	-	12	12,6	100/100
014011	16 ÷ 16	(6 - 6)	16	16 - 2.5	-	17,5	19,4	100/100
014081	25 ÷ 10	(4 - 8)	25 - 16	10 - 1.5	-	17	19,8	100/100
014021	25 ÷ 25	(4 - 4)	25	25 - 16	-	17,5	21,4	100/100
014091	35 ÷ 16	(2 - 6)	40 - 10	16 - 1.5	25 - 25	21,5	24,6	100/100
014031	35 ÷ 35	(2 - 2)	40 - 35	40 - 25	35 - 35	21,5	26,6	100/100
014101	50 ÷ 25	(1/0 - 4)	50	25 - 4	-	26,5	32,9	25/25
014041	50 ÷ 50	(1/0 - 1/0)	50	50 - 35	-	26,5	33	25/25
014111	70 ÷ 35	(2/0 - 2)	70 - 63	40 - 4	-	27	33	25/25
014051	70 ÷ 70	(2/0 - 2/0)	70 - 50	70 - 35	50 - 50	27	34	25/25
014121	95 ÷ 35	(3/0 - 2)	95 - 63	40 - 4	-	30	40,5	25/25
014061	95 ÷ 95	(3/0 - 3/0)	100 - 80	100 - 63	-	30	41	25/25
014131	95 ÷ 70	(3/0 - 2/0)	100 - 80	70 - 50	63 - 63, 70 - 70	30	41	25/25
014071	120 ÷ 120	(4/0 - 4/0)	125 - 110	125 - 25	-	30	45	25/25
014141	150 ÷ 120	(300 - 4/0)	160 - 150	125 - 25	95 - 95, 120 - 120	31	45	25/25
014171	150 ÷ 150	(300 - 300)	150	150 - 63	-	30	45,3	25/25
014151	185 ÷ 95	(400 - 3/0)	185	100 - 16	125 - 125	31	45	25/25
014181	185 ÷ 185	(400 - 400)	185 - 120	185 - 120	-	22,6	68	15/15
