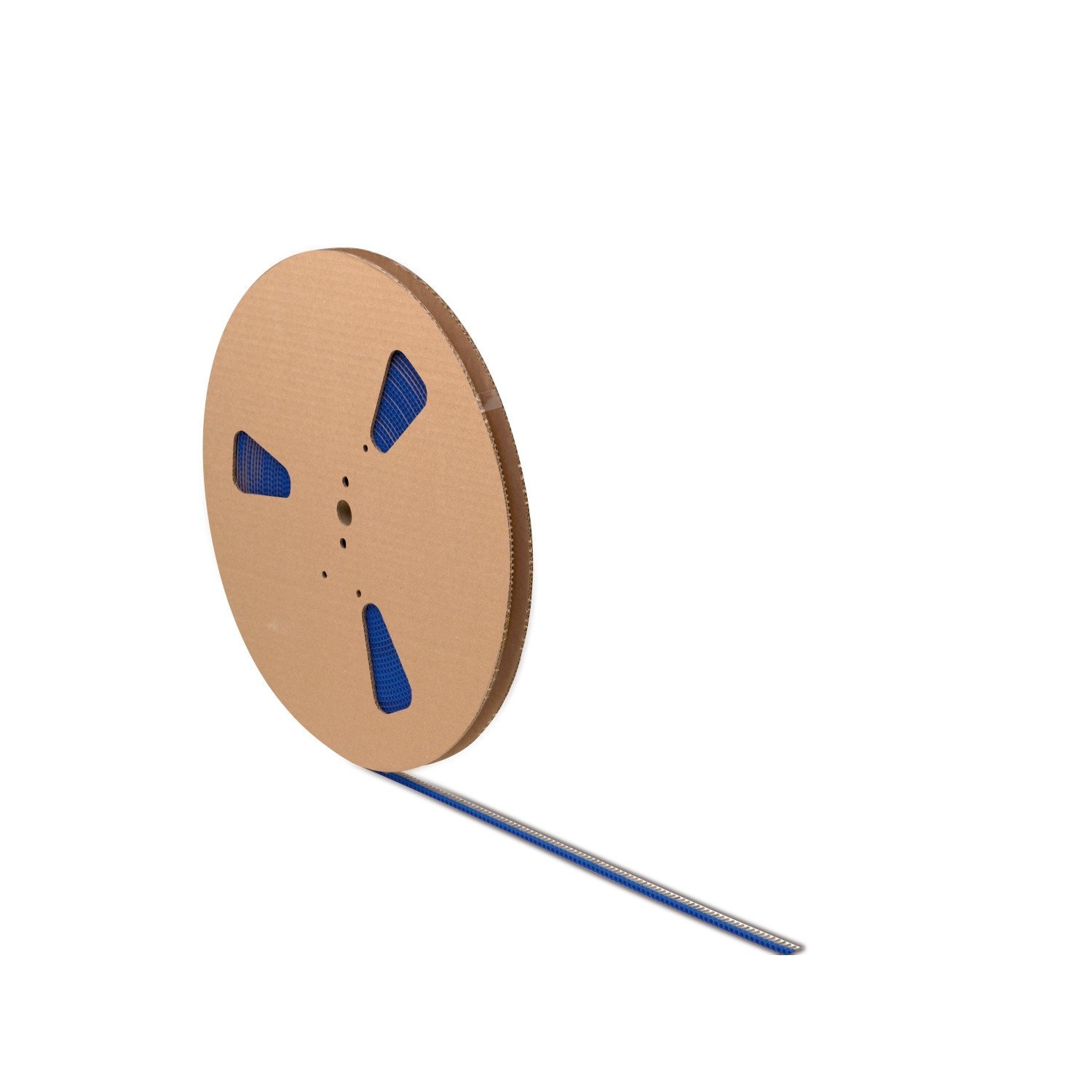

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE · IN A REEL

Previous

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · SINGLE CABLE · IN A STRAP

Previous

END-SLEEVES FOR COPPER CONDUCTORS · INSULATED · DOUBLE CABLE

Product Categoryend-sleeve
Terminal materialtinned copper
Insulation materialpolypropylene (PP) without flame retardant
ReelDiametro Esterno: 45 cm
Diametro Foro: 2,3 cm
Spessore: 3 cm
Operating temperature105°C max
According to std.DIN 46228-4 (tubular ferrules with plastic sleeve), UL486F (bare and covered ferrules)
Etim 9EC000005
cid11TC02C
PDF documents
Images with
dimensions
Item
Code		 ColorStandard color 1Standard color 2Color DIN 46228/4Section
[mm²]		Section
[AWG]		L1
[mm]		L2
[mm]		D1
[mm]		D2
[mm]		D3
[mm]		 Quantity per
Wishlist
91501 Orange√--0,5(20)1483,12,6110000/10000
91601* White-√√0,5(20)1483,12,6110000/10000
91502 White√--0,75(18)1483,32,81,210000/10000
91702 Blue-√-0,75(18)1483,32,81,210000/10000
91602* Grey--√0,75(18)1483,32,81,210000/10000
91503 Yellow√--1(18)1483,531,47500/7500
91603* Red-√√1(18)1483,531,47500/7500
91504 Red√--1,5(16)14843,51,77500/7500
91604* Black-√√1,5(16)14843,51,77500/7500
91506* Blue√-√2,5(14)1484,74,22,25000/5000
91706 Grey-√-2,5(14)1484,74,22,25000/5000
