BUTT CONNECTORS · UNINSULATED · DIN 46267/1

Previous

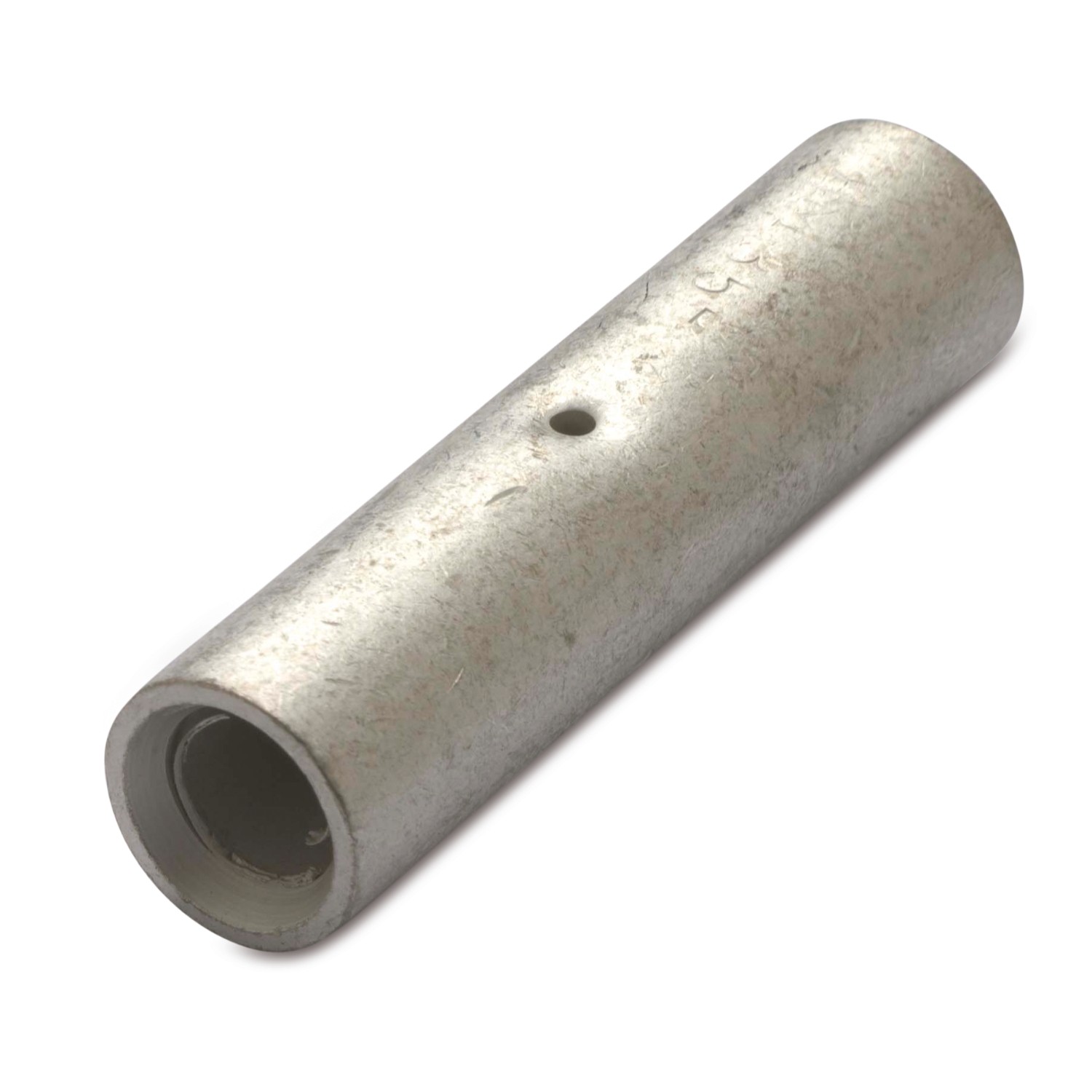

BUTT CONNECTORS · UNINSULATED

Product Categorybutt connectors
Terminal materialtinned copper
According to standardDIN 46267/1
Operating temperaturefrom -50 °C to +150 °C
Typewith central inspection hole and flush for a right insertion of the conductor.
Dimensionscompliant to DIN 46267/1 standard
Etim 9EC001059
cid11TF01C
PDF documents
Images with
dimensions
Item
Code		 Section
[mm²]		Section
[AWG/kcmil]		IndentL1
[mm]		D1
[mm]		D2
[mm]		 Quantity per
Wishlist
81460 10(8)63064,5100/100
81560 16(6)8508,55,5100/100
81660 25(4)1050107100/100
81760 35(2)125012,58,5100/100
81860 50(1/0)1456141050/50
81960 70(2/0)1656161250/50
83160 95(3/0)18701913,825/25
83260 120(4/0)20702115,525/25
83360 150(300)228023,51725/25
83460 185(400)258525,51910/10
83560 240(500)28902921,510/10
