NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LOCKNUT

Product was successfully added to your shopping cart.

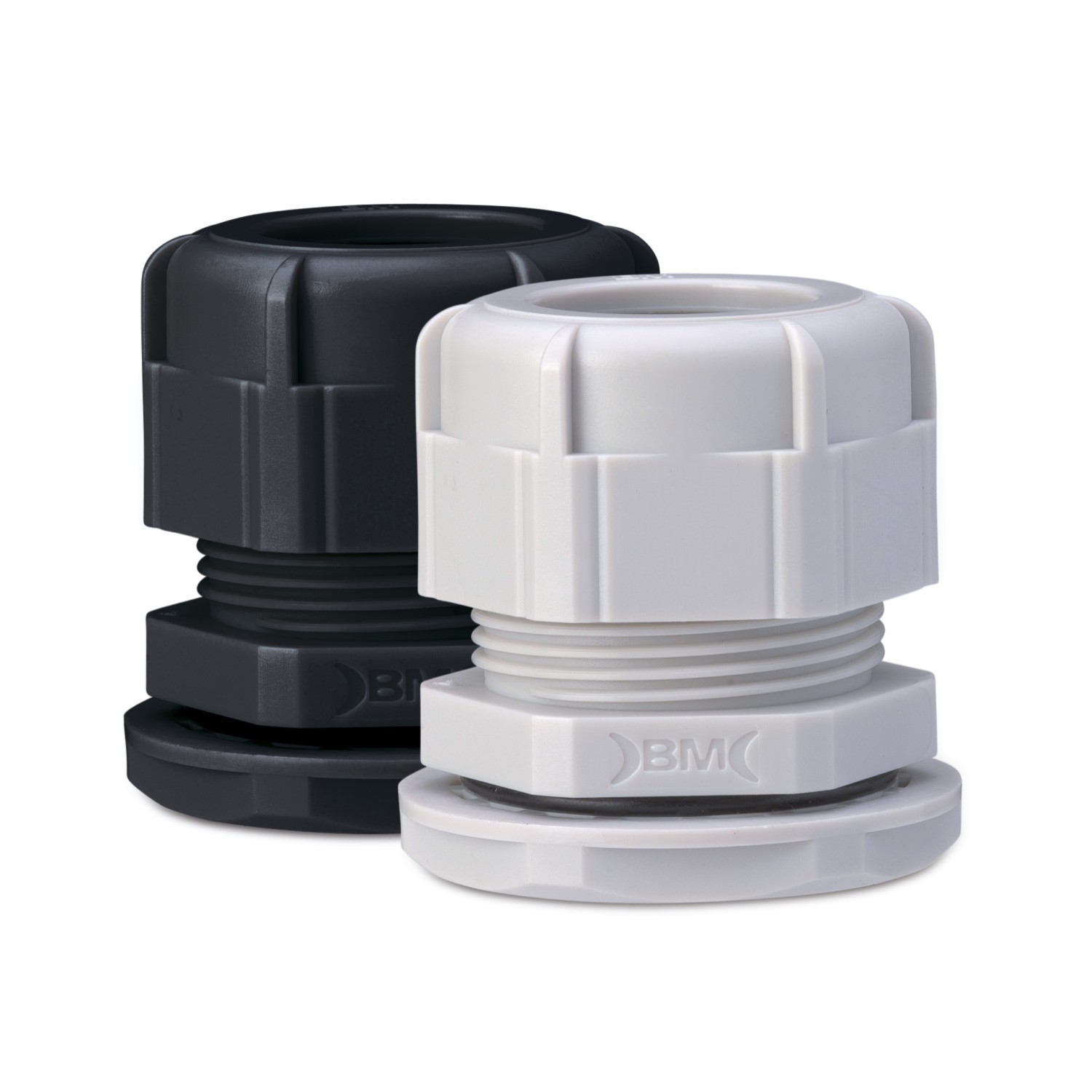

NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LOCKNUT

NYLON CABLE GLANDS · METRIC THREAD · IP68 · STANDARD

NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LONG THREAD

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Locknut	with flange
Operating temperature	from -20 °C to +90 °C
Inner gasket and washer	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Etim 9	EC000441
cid	22PA01B

Images with
dimensions

Coded items

Item Code	Color	Metric thread size (EN60423)	Ø cable [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]		Quantity per Wishlist

Item Code	Color	Metric thread size (EN60423)	Ø cable [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]		Quantity per Wishlist
4712	Grey RAL 7035	M 12 x 1.5	3 - 6,5	9	16	17	25/250
4712N	Black RAL 9005	M 12 x 1.5	3 - 6,5	9	16	17	25/25
4717	Grey RAL 7035	M 16 x 1.5	4 - 8	9	19	22	25/250
4717N	Black RAL 9005	M 16 x 1.5	4 - 8	9	19	22	25/250
4720	Grey RAL 7035	M 20 x 1.5	6 - 12	10	24	26	25/250
4720N	Black RAL 9005	M 20 x 1.5	6 - 12	10	24	26	25/25
4725	Grey RAL 7035	M 25 x 1.5	13 - 18	12	33	32	20/100
4725N	Black RAL 9005	M 25 x 1.5	13 - 18	12	33	32	20/20
4732	Grey RAL 7035	M 32 x 1.5	16 - 21	12	36	41	20/100
4732N	Black RAL 9005	M 32 x 1.5	16 - 21	12	36	41	20/20
4740	Grey RAL 7035	M 40 x 1.5	20 - 26	15	46	49	10/10
4740N	Black RAL 9005	M 40 x 1.5	20 - 26	15	46	49	10/10
4750	Grey RAL 7035	M 50 x 1.5	32 - 38	18	60	61	5/5
4750N	Black RAL 9005	M 50 x 1.5	32 - 38	18	60	61	5/5
4763	Grey RAL 7035	M 63 x 1.5	37 - 44	18	68	73	5/5
4763N	Black RAL 9005	M 63 x 1.5	37 - 44	18	68	73	5/5
