NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LONG THREAD

Product was successfully added to your shopping cart.

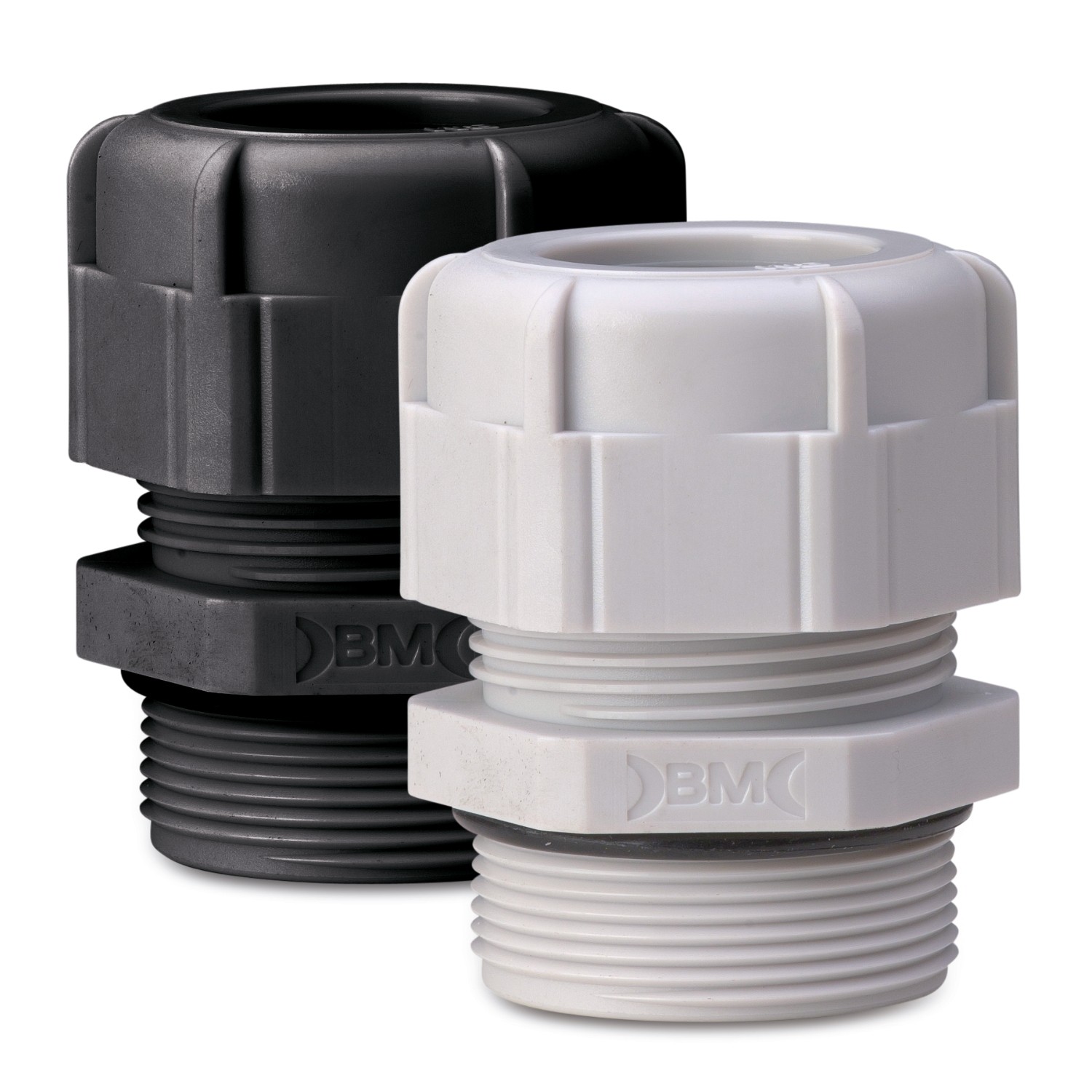

NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LONG THREAD

NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH LOCKNUT

NYLON CABLE GLANDS · METRIC THREAD · IP68 · WITH SPIRAL CABLE PROTECTION

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature	from -20 °C to +90 °C
Inner gasket and washer	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Etim 9	EC000441
cid	22PA01C

Images with
dimensions

Coded items

Item Code	Color	Metric thread size (EN60423)	Ø cable [mm]	L [mm]	E wrench [nut]		CAD FILE	Quantity per Wishlist
4912L	Grey RAL 7035	M 12 x 1.5	3 - 6,5	15	16	25/25	3D
4912LN	Black RAL 9005	M 12 x 1.5	3 - 6,5	15	16	25/250	3D
4917L	Grey RAL 7035	M 16 x 1.5	4 - 8	15	19	25/250
4917LN	Black RAL 9005	M 16 x 1.5	4 - 8	15	19	25/250
4920L	Grey RAL 7035	M 20 x 1.5	6 - 12	15	24	10/100
4920LN	Black RAL 9005	M 20 x 1.5	6 - 12	15	24	10/10
4925L	Grey RAL 7035	M 25 x 1.5	13 - 18	15	33	10/100
4925LN	Black RAL 9005	M 25 x 1.5	13 - 18	15	33	10/100
4932L	Grey RAL 7035	M 32 x 1.5	16 - 21	15	36	10/10
4932LN	Black RAL 9005	M 32 x 1.5	16 - 21	15	36	10/10
4940L	Grey RAL 7035	M 40 x 1.5	20 - 26	18	46	5/5
4940LN	Black RAL 9005	M 40 x 1.5	20 - 26	18	46	5/50
4950L	Grey RAL 7035	M 50 x 1.5	32 - 38	20	60	3/3
4950LN	Black RAL 9005	M 50 x 1.5	32 - 38	20	60	3/30
4963L	Grey RAL 7035	M 63 x 1.5	37 - 44	20	68	3/3
4963LN	Black RAL 9005	M 63 x 1.5	37 - 44	20	68	3/30
