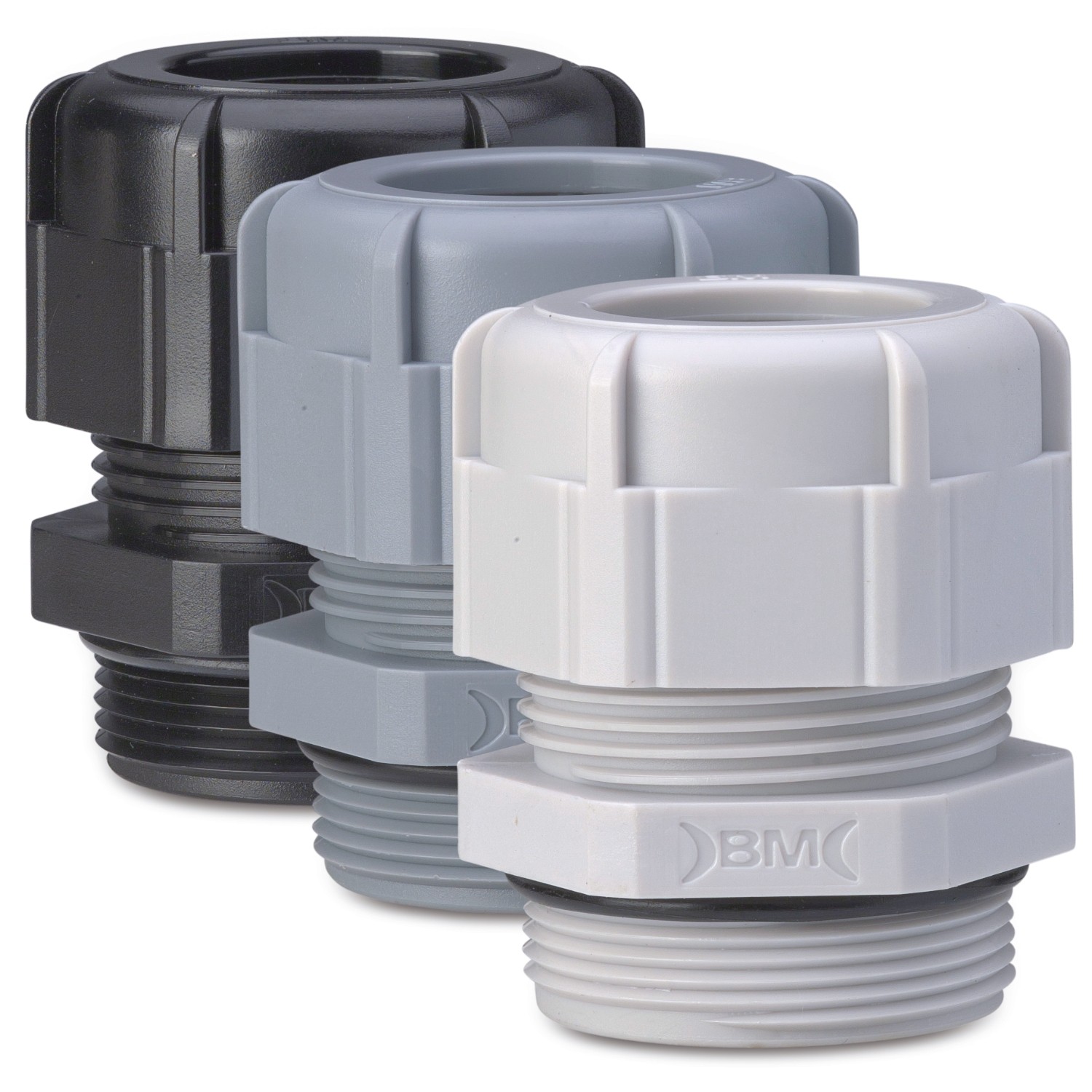

NYLON CABLE GLANDS · PG THREAD · IP68 · STANDARD

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature	from -20 °C to +90 °C
Inner gasket and washer	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
Assembly	do not remove or move the gasket; tighten on a flat and smooth surface.
Etim 9	EC000441
cid	22PA03A

Images with
dimensions

Item Code	Color	PG thread size (DIN40430)	Ø cable [mm]	L [mm]	E wrench [nut]	
4007	Grey RAL 7035	PG 7	3 - 6,5	9	16	50/500
4307	Grey RAL 7001	PG 7	3 - 6,5	9	16	50/500
4007N	Black RAL 9005	PG 7	3 - 6,5	9	16	50/50
4009	Grey RAL 7035	PG 9	4 - 8	9	19	50/500
4309	Grey RAL 7001	PG 9	4 - 8	9	19	50/500
4009N	Black RAL 9005	PG 9	4 - 8	9	19	50/50
4011	Grey RAL 7035	PG 11	5 - 10	9	22	25/250
4311	Grey RAL 7001	PG 11	5 - 10	9	22	25/250
4011N	Black RAL 9005	PG 11	5 - 10	9	22	25/25
4013	Grey RAL 7035	PG 13.5	6 - 11	10	24	25/250
4313	Grey RAL 7001	PG 13.5	6 - 11	10	24	25/250
4013N	Black RAL 9005	PG 13.5	6 - 11	10	24	25/250
4016	Grey RAL 7035	PG 16	10 - 13	10	27	25/250
4316	Grey RAL 7001	PG 16	10 - 13	10	27	25/250
4016N	Black RAL 9005	PG 16	10 - 13	10	27	25/250
4021	Grey RAL 7035	PG 21	13 - 18	12	33	20/20
4321	Grey RAL 7001	PG 21	13 - 18	12	33	20/200
4021N	Black RAL 9005	PG 21	13 - 18	12	33	20/20
4029	Grey RAL 7035	PG 29	18 - 25	12	42	10/100
4329	Grey RAL 7001	PG 29	18 - 25	12	42	10/100
4029N	Black RAL 9005	PG 29	18 - 25	12	42	10/10
4036	Grey RAL 7035	PG 36	25 - 32	15	52	5/50
4336	Grey RAL 7001	PG 36	25 - 32	15	52	5/50
4036N	Black RAL 9005	PG 36	25 - 32	15	52	5/5
4042	Grey RAL 7035	PG 42	32 - 38	18	60	5/10
4342	Grey RAL 7001	PG 42	32 - 38	18	60	5/50
4042N	Black RAL 9005	PG 42	32 - 38	18	60	10/10
4048	Grey RAL 7035	PG 48	37 - 44	18	68	5/25
4348	Grey RAL 7001	PG 48	37 - 44	18	68	5/50
4048N	Black RAL 9005	PG 48	37 - 44	18	68	5/5
