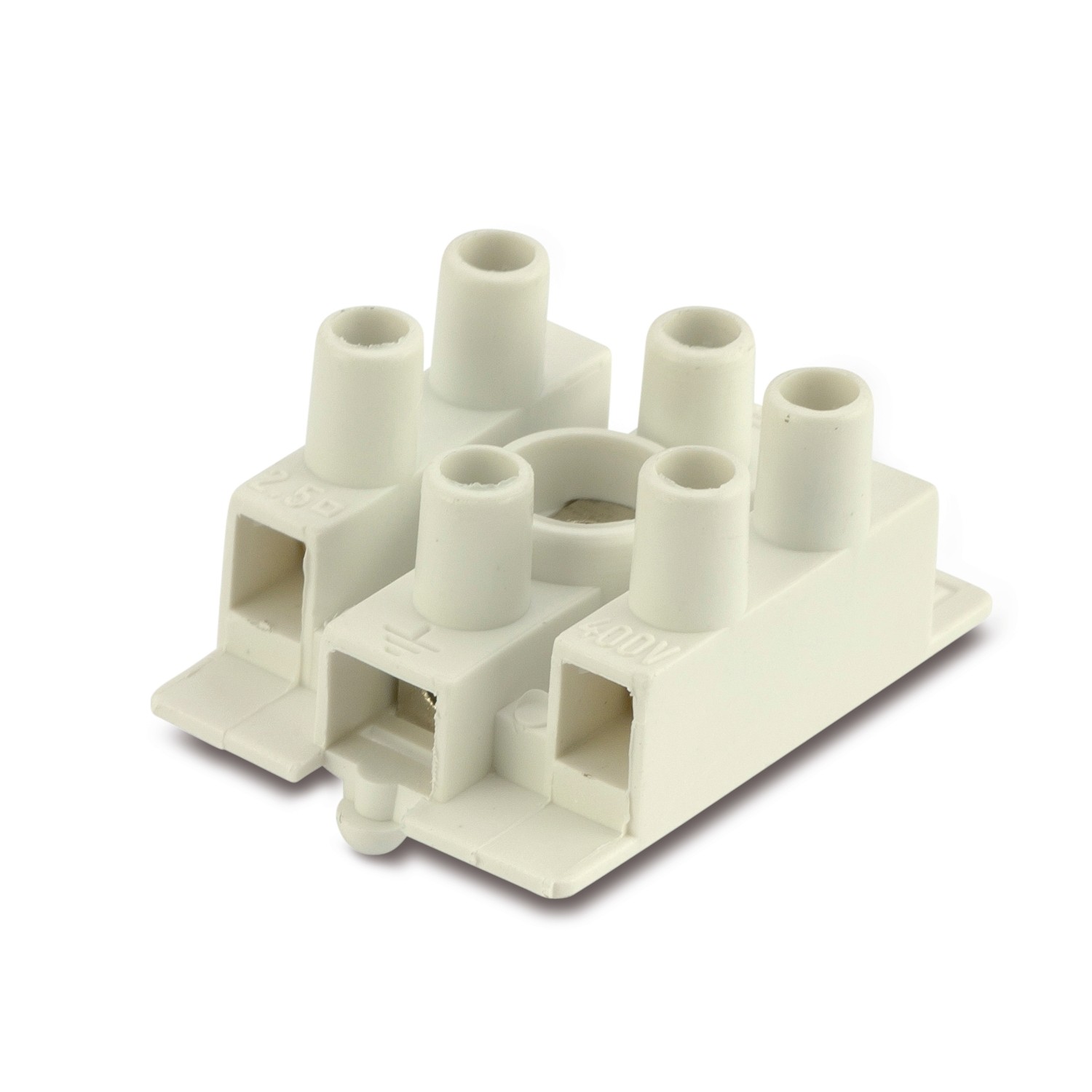

MULTIWAY TERMINAL BLOCKS · NYLON · 3-WAY · FOR FIXING ON SHEET

Product Categorymultiway terminal blocks
Insulating housingpolyamide (PA 6.6) natural color
Conductive bodynickel-plated brass
Captive screw ingalvanized steel (M3)
MarkingL N on the ways
Insulation self-extinguishingEN 60695-2-10 a 850 °C
Conductor typerigid and flexible
Max operating temperature100 °C
Max short-time temperature160 °C
Test voltage2500 V
Stripping length11 mm
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
AssemblyGrounding screw hole for metal sheets with thickness up to 1 mm: Ø 3,5 ± 0,1. Drilling template as shown in the figure.
Grounding screwM4x10
Etim 9EC000901
cid41MA08A
PDF documents
Images with
dimensions
Item
Code		 Section
[mm²]		WaysRated voltage
[V]		Test current
[A]		Torque
[Nm]		L1
[mm]		L2
[mm]		L3
[mm]		W1
[mm]		W2
[mm]		S1
[mm]		S2
[mm]		D1
[mm]		D2
[mm]		 CAD FILE Quantity per
Wishlist
M096 2,53400240,253610242720,517,5103,14,21000/10003D
