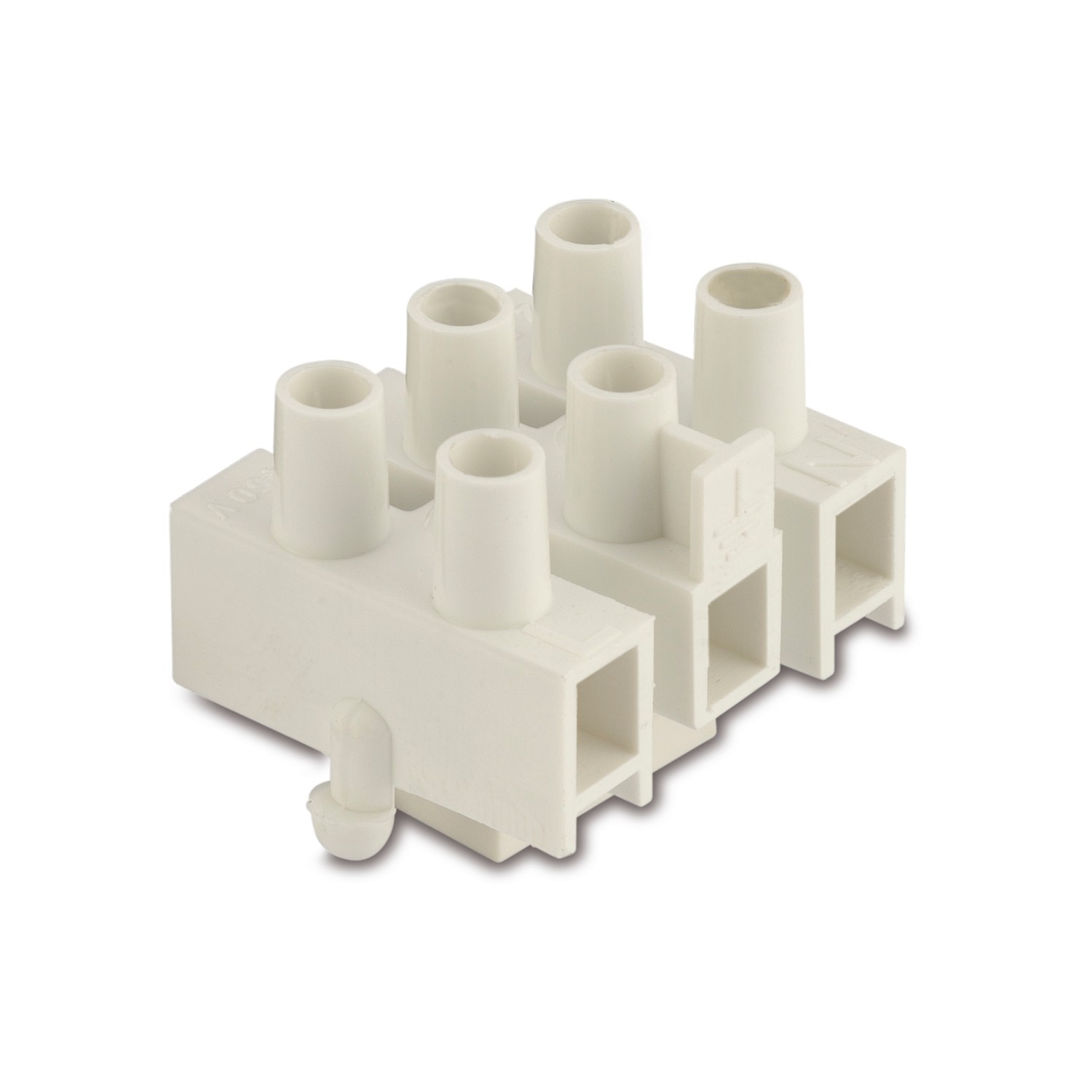

MULTIWAY TERMINAL BLOCKS · NYLON · 3-WAY · FOR FIXING ON SHEET

Product was successfully added to your shopping cart.

MULTIWAY TERMINAL BLOCKS · NYLON · 3-WAY · FOR FIXING ON SHEET

MULTIWAY TERMINAL BLOCKS · NYLON · 3-WAY · FOR DIRECT GROUNDING

MULTIWAY TERMINAL BLOCKS · NYLON · FROM 1 TO 5 WAYS · WITH FUSE HOLDER · M097 SERIES

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) white color
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
Grounding fork for M4 screw (T version)	brass
Marking	L  N on the ways
Insulation self-extinguishing	EN 60695-2-10 a 850 °C
Conductor type	rigid and flexible
Max operating temperature	110 °C
Max short-time temperature	160 °C
Test voltage	2500 V
Stripping length	7 mm
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
Assembly	Drilling template as shown in the figure. Fasten on metal sheets with 0,6 ÷ 1 mm thickness by pressing the pins.
Etim 9	EC001284
cid	41MA09A

Images with
dimensions

Coded items

Item Code	Description	Section [mm²]	Rated voltage [V]	Test current [A]	Torque [Nm]	L1 [mm]	L2 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	S2 [mm]		Quantity per Wishlist
963		2,5	450	24	0,25	27	10	24,5	10	18,5	10,5	1000/1000
963CS	with stainless steel wire protection	2,5	450	24	0,25	27	10	24,5	10	18,5	10,5	1000/1000
